A long time ago I reviewed a little product called the Box Office media player from Patriot, and I found it to be a very nice little product and so do many other people out there today. Patriot has updated the Box Office and renamed it to the PBO Core, the name is different and so is the interface. Everything has been updated overall, and that’s a good thing as it makes the entire experience that much more enjoyable.

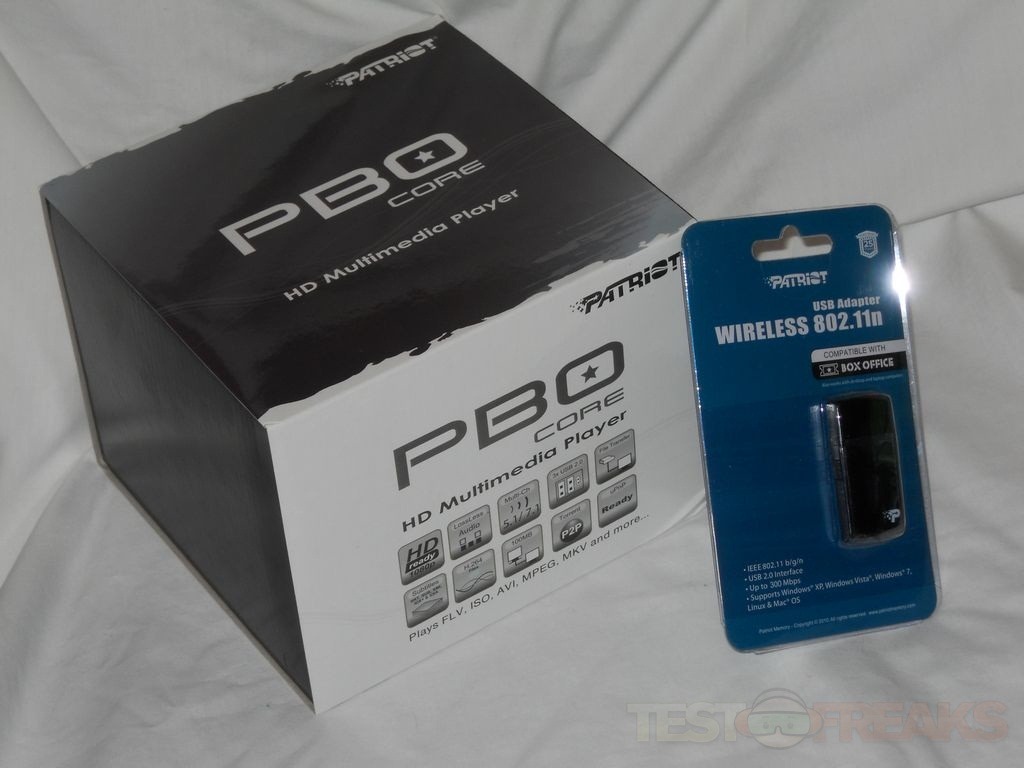

Patriot was kind enough to not only send over the PBO Core but the newest USB wi-fi wireless adapter that is capable of 802.11n speeds. The adapter is small, like a fat little USB drive and it can be used with the PBO Core or with any computer actually.

pbocore1 pbocore2

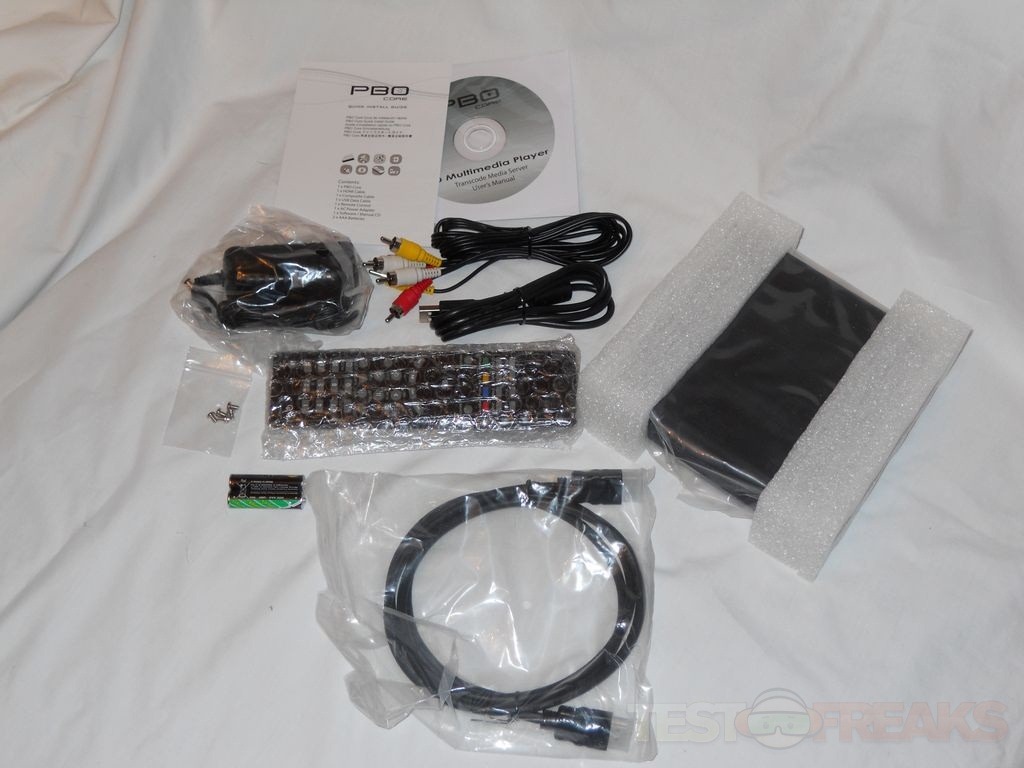

Included in the box with the PBO Core you’ll find user manual on CD, quick start guide, USB cable, A/V Cable, HDMI cable, batteries, screws, power supply and the remote.

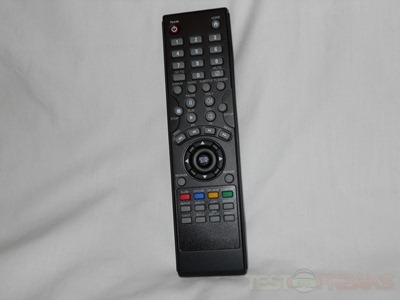

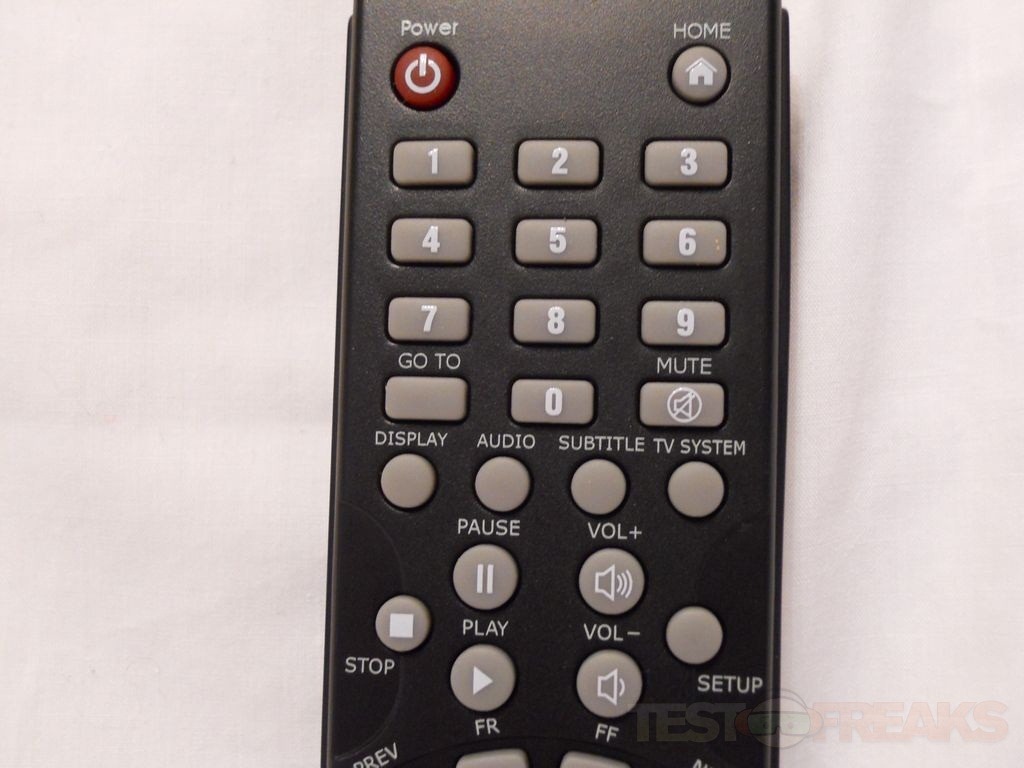

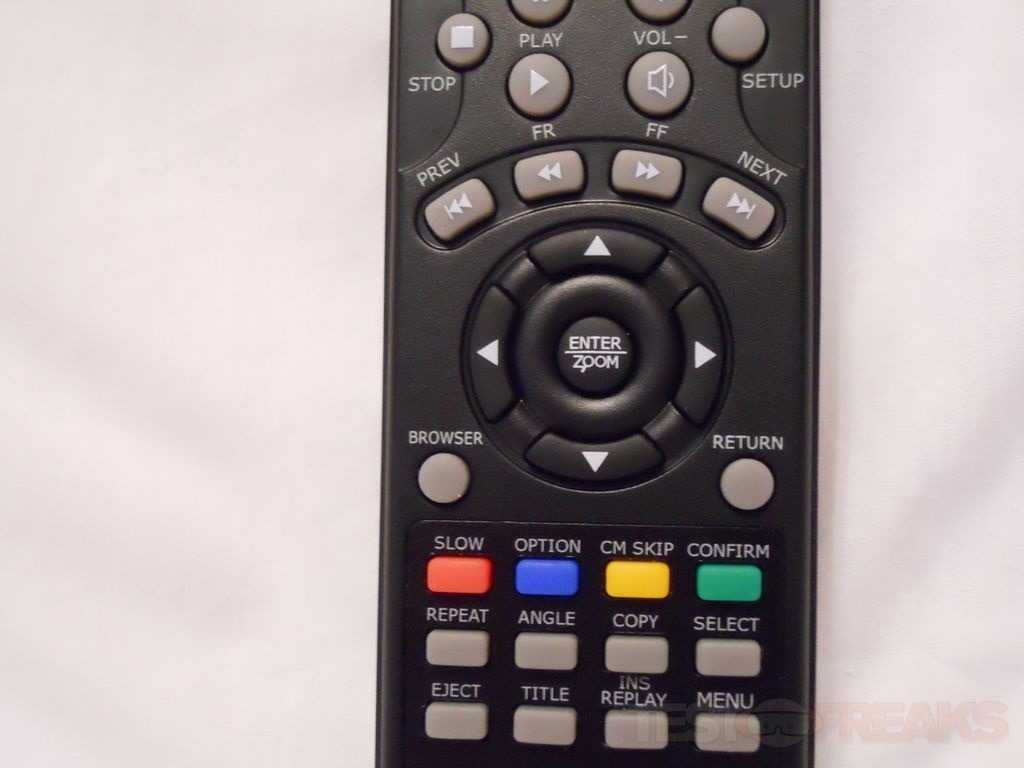

The remote is small, it fits nicely in the hand and has controls for everything you need to do with the PBO core.


pbocore11 pbocore10

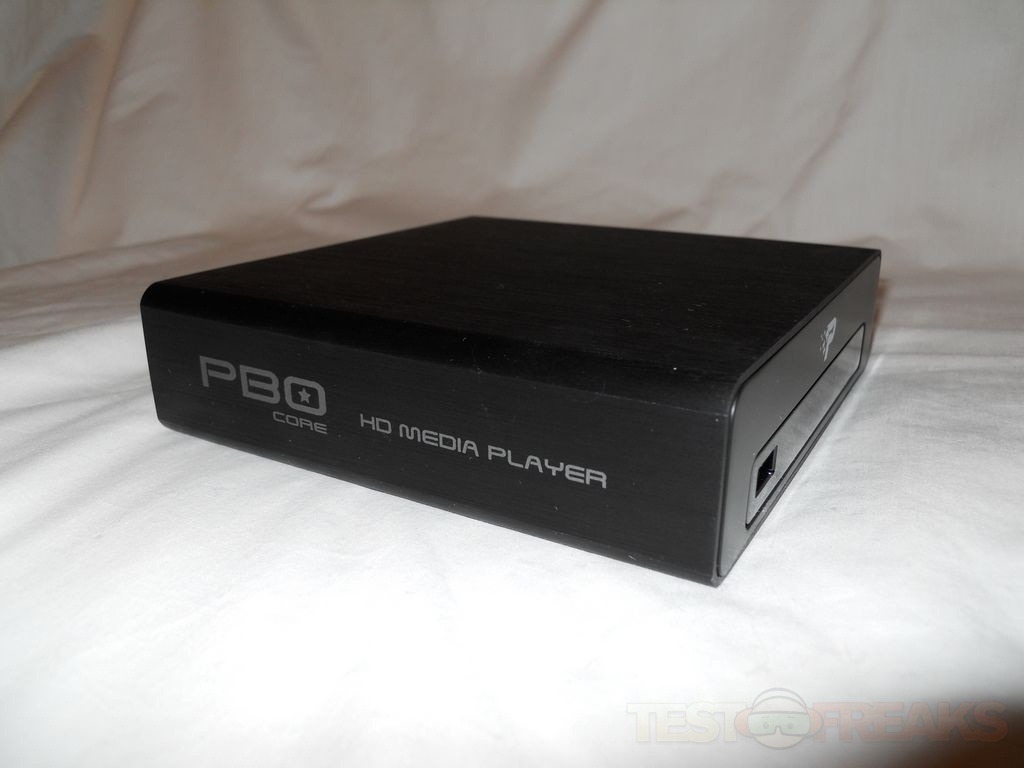

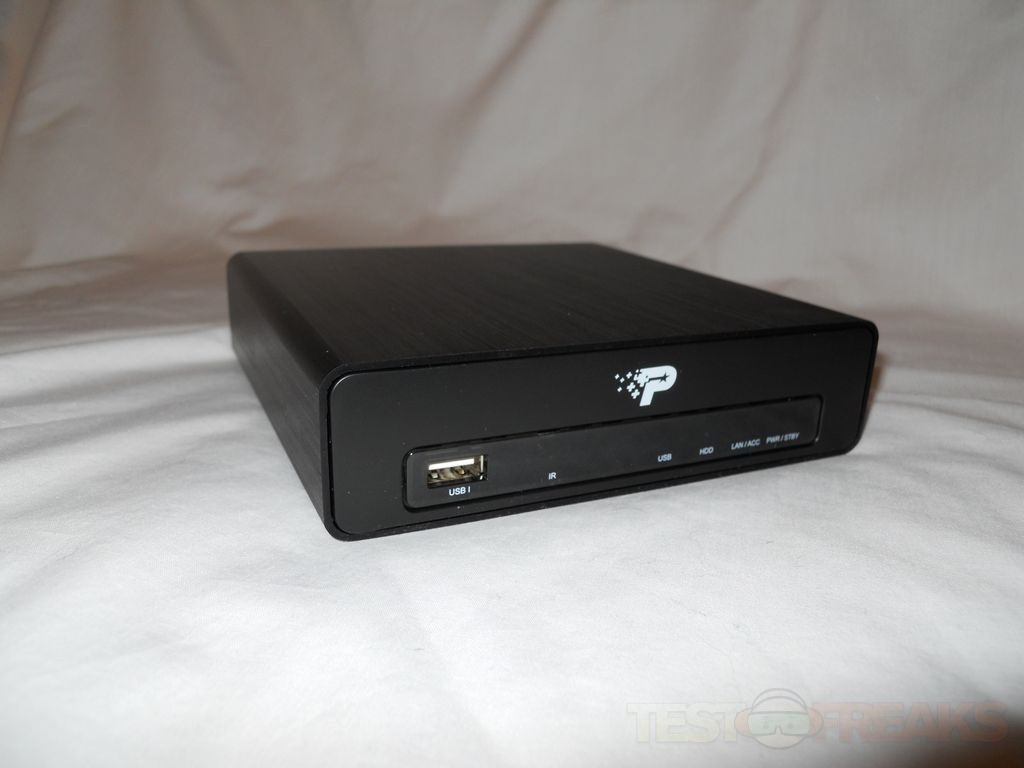

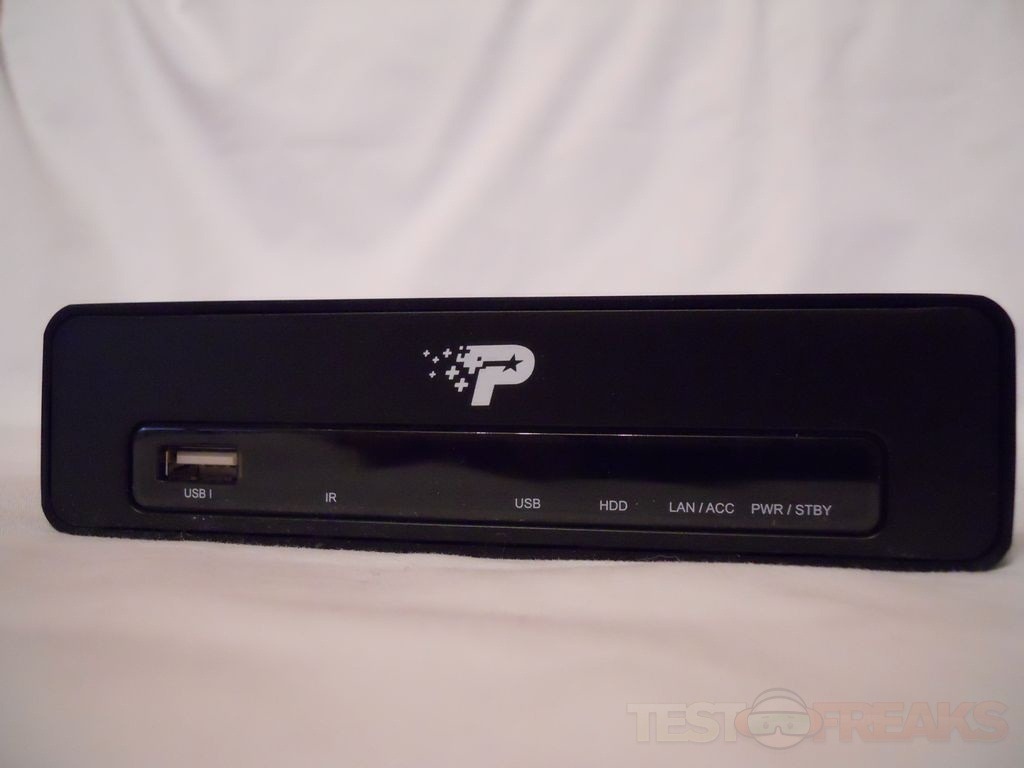

The PBO Core itself is basically a small metal box that can be opened up to add a 2.5” hard drive inside of it if you want.  You don’t need to add a hard drive, you can use a USB drive or even a USB optical drive if you prefer. On the front you’ll find LED status lights and a USB port.

pbocore4 pbocore8

On the side is the PBO Core logo:

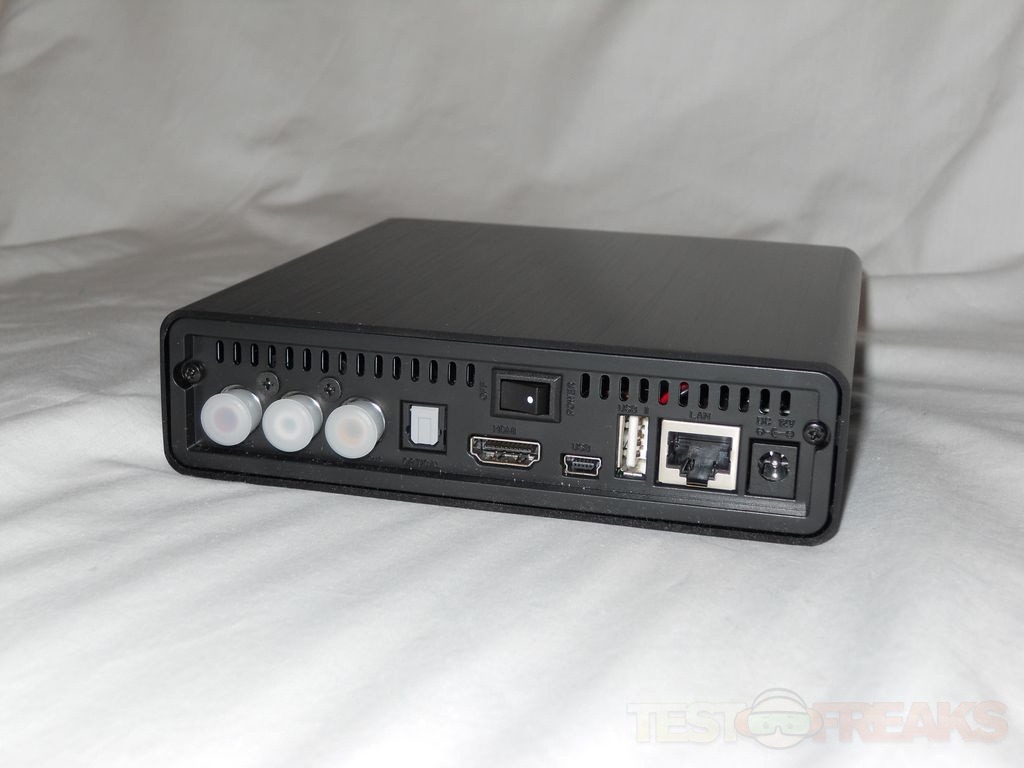

On the back you’ll see connections for audio and video in the form of RCA connections and an HDMI jack. There you’ll also find an optical connection, power connection, USB port, an ethernet connection and the power switch.

pbocore6 pbocore7


Box Office Media Player

The Patriot PBO Core is a Full-HD all-in-one media player that frees your digital media library from the constraints of a PC and bridges digital media to your home entertainment system and brings your entire media library to the comfort of your living room. With support for todays most popular media formats (H.264,ISO, VOB, DivX, xVid, MKV, MOV, MPEG and more) PBO Core offers offers a variety of ways to connect to your media library through 3 USB ports, optional internal 2.5" hard drive, UPnP and wired or wireless network streaming.

* Supports Full HD-video playback up to 1080p
* Supports Dolby Digital and DTS surround sound
* Expandable internal storage via 2.5" SATA SSD/HDD
* Supports video playback via UPnP networking streaming
* Browse and shared videos, photos and music from attached network devices/PCs, USB Flash Drives and USB external storage
* File formats supports:
–Music – WMA, MP3, Real Audio (Ra), EAV, OGG, ACC, FLAC
–Graphics – JPEG, BMP, PNG
–Video – [MPEG-1] MPG/MPEG/DAT,
–[DviX 3/4/5/6, Xvid] AVI/MKV,
–[Real Video 8/9/10] RM/RMVB

* Supports Internet Media Services (IMS) Flickr, Stocks, Video News, Video Podcasts, Weather, Picasa, RSS (+20 video feeds) and custom RSS feeds
* New improved user interface for easier use and album artwork feature during music search and playback
* Increased HDTV compatibility
* New compatibility with home made media connected via USB optical device
* New firmware and features are backward compatible with legacy units

Turning it on you’ll be greeted with the title screen logo and the main menu off to the left side. The menu goes right and left, and up and down. You can select each one and open to a new full screen.

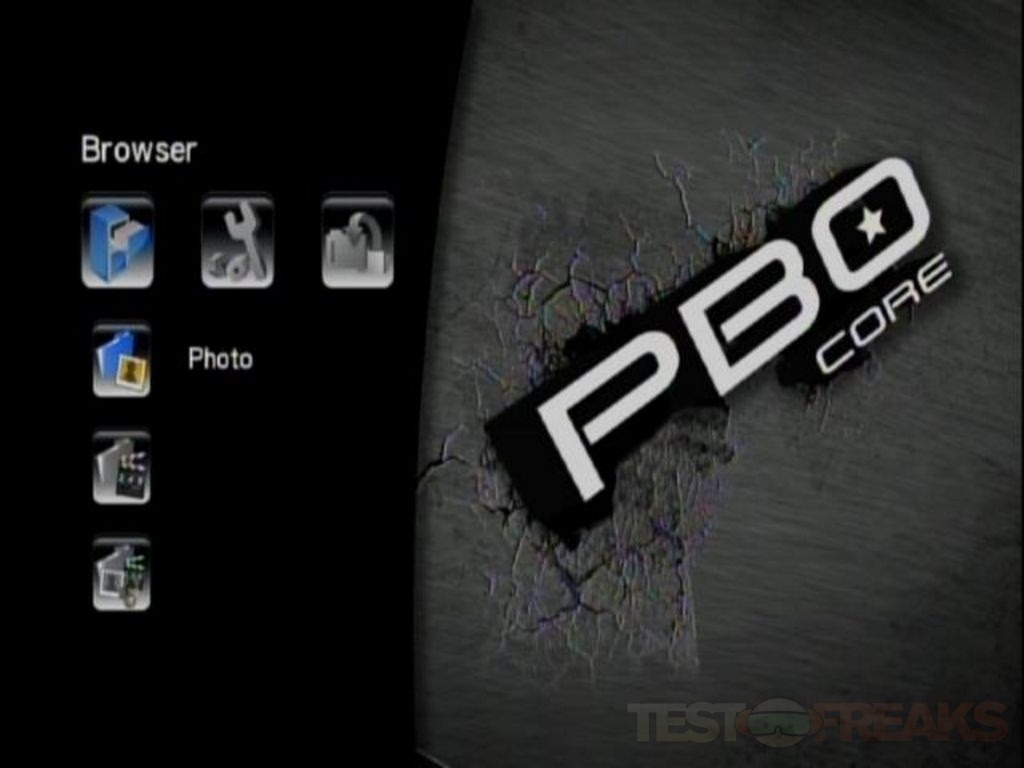

The Browser is the main menu choice of course, this is where you’ll select your media from that can be broken down into sections, all, music, movies, and photo.


pbocore13 pbocore14

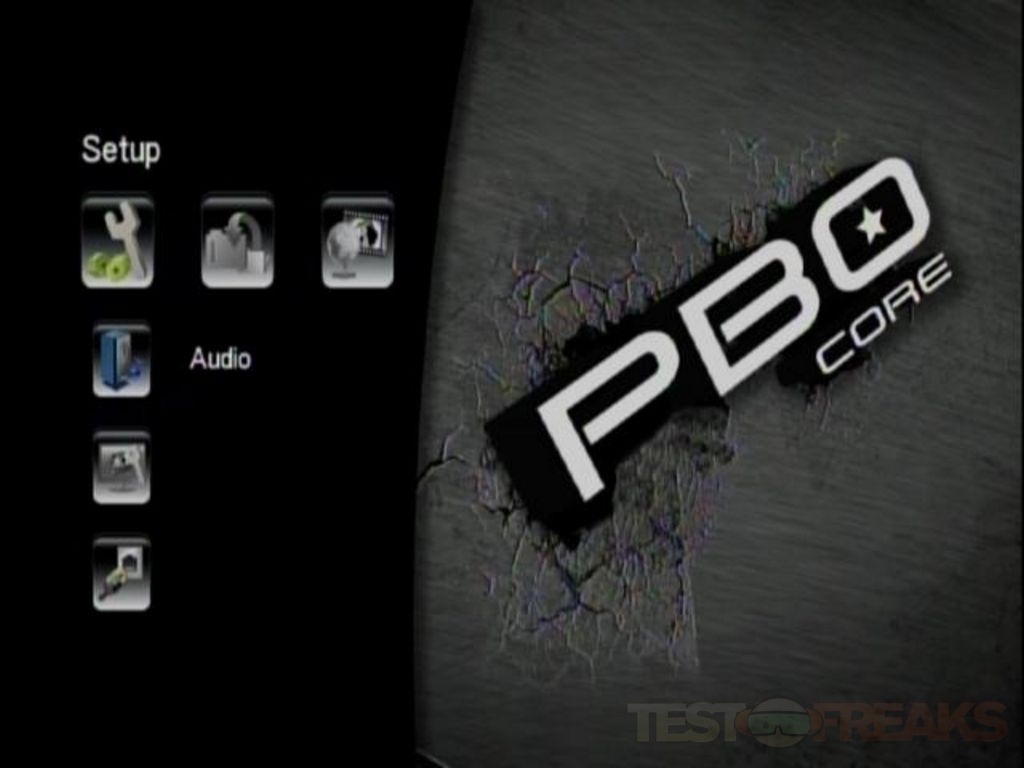

The next three choices are Setup, File Copy, and IMS.

pbocore15 pbocore16 pbocore17

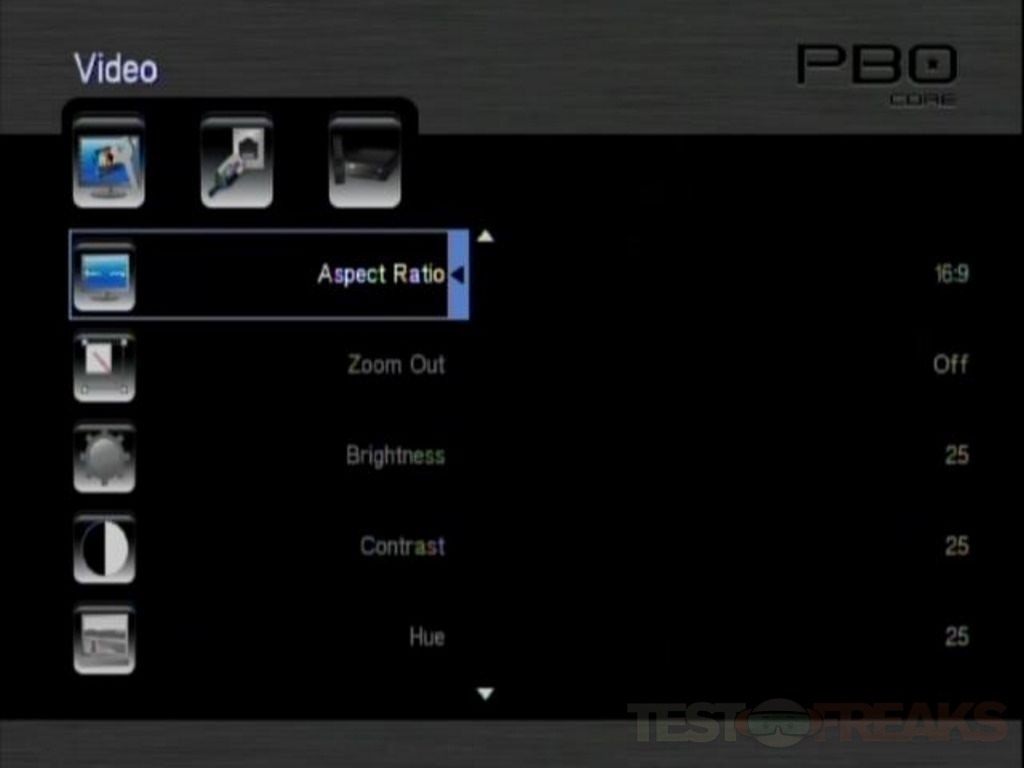

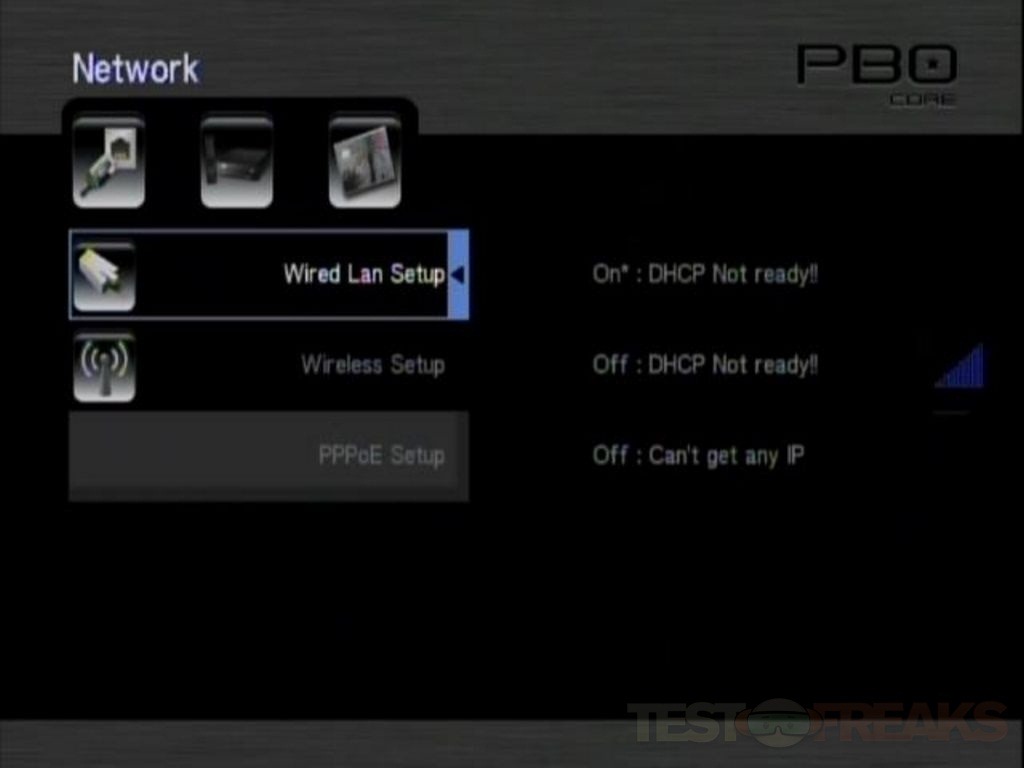

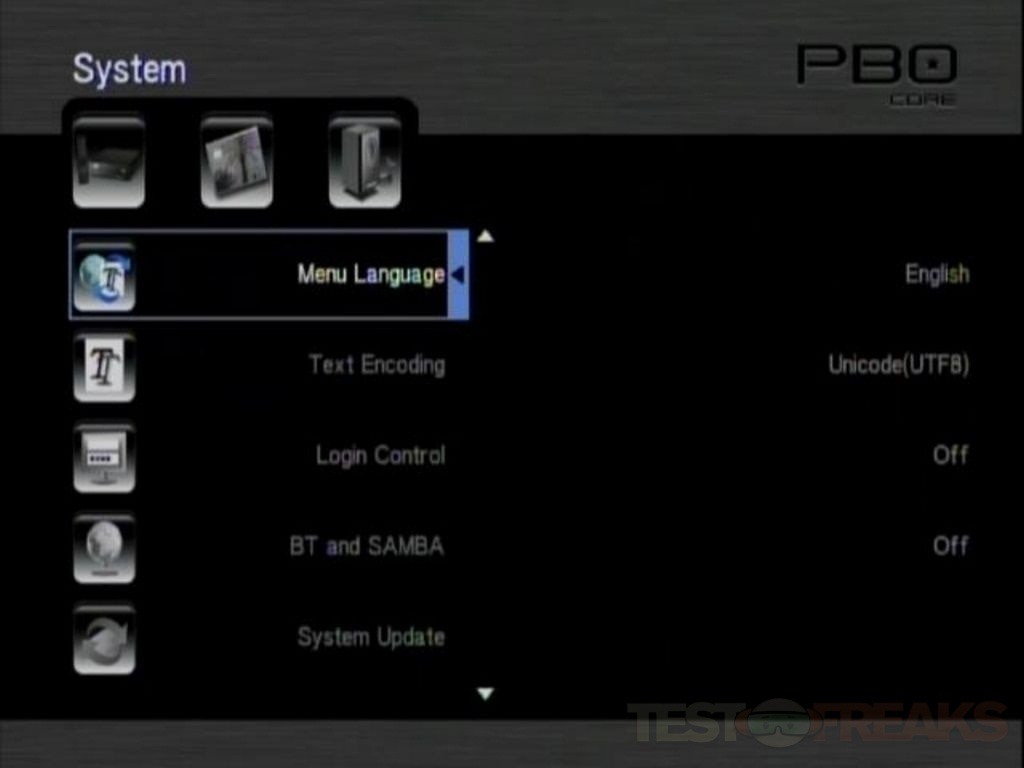

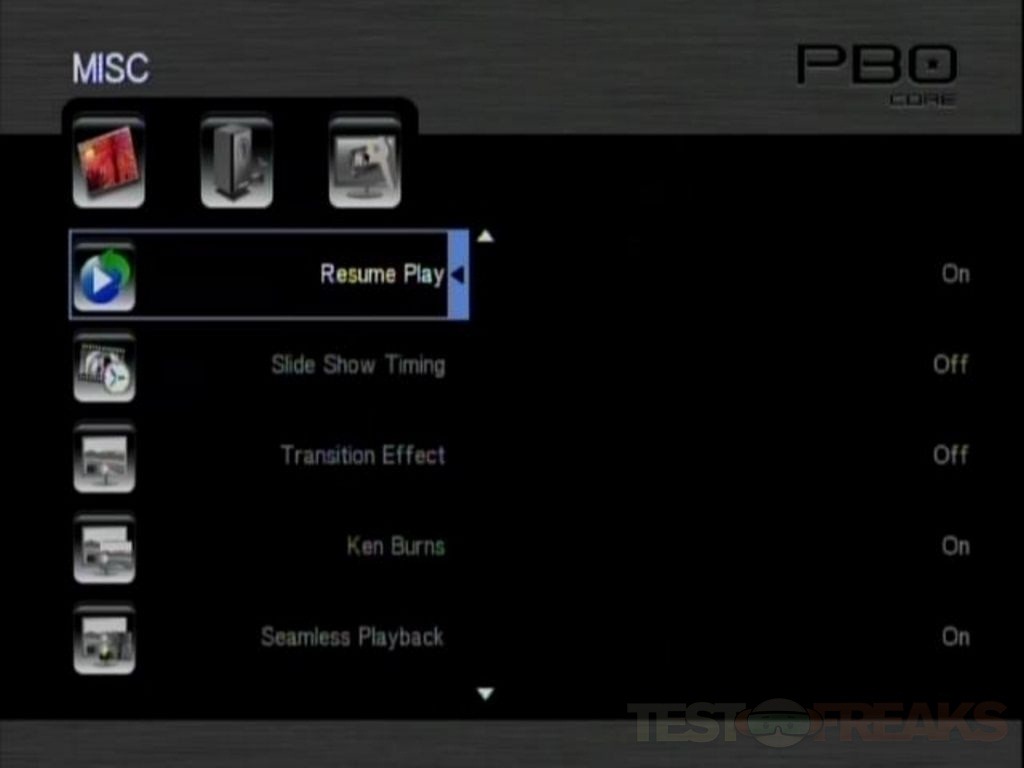

Under Setup you’ll find choices for System, Misc, Audio, Video and Network. They’re all pretty much self-explanatory I think.


pbocore19 pbocore20

pbocore21 pbocore22

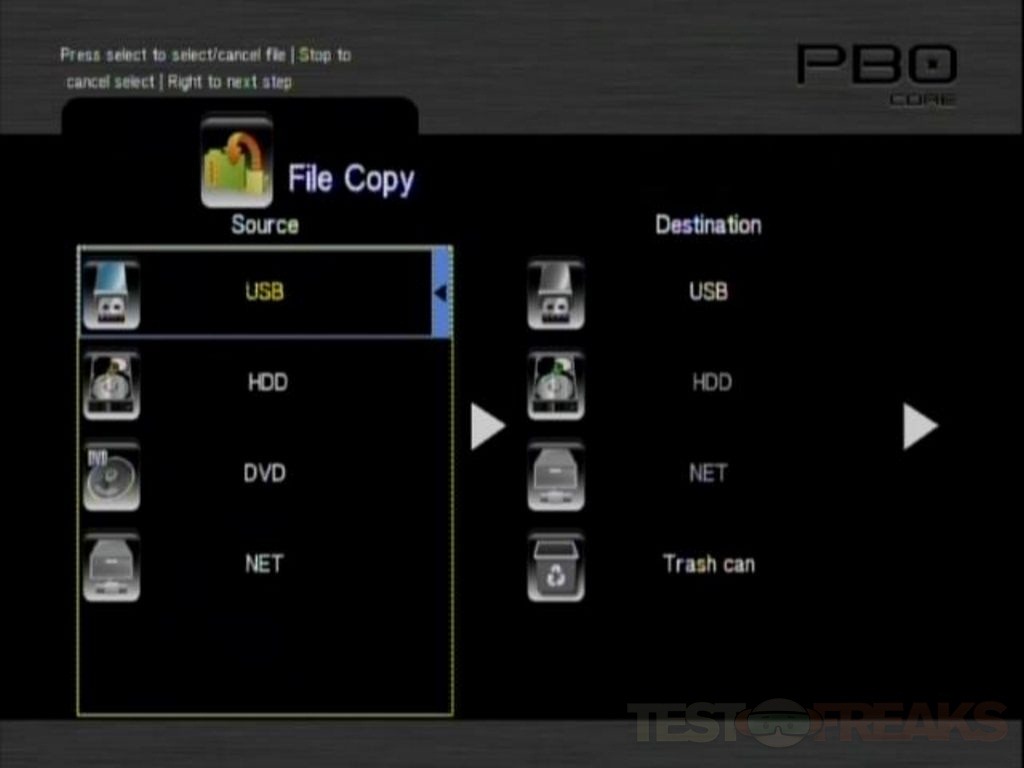

Under File Copy you’ll find several choices for ways to copy things to and from different devices like hard drive, USB, DVD and network.

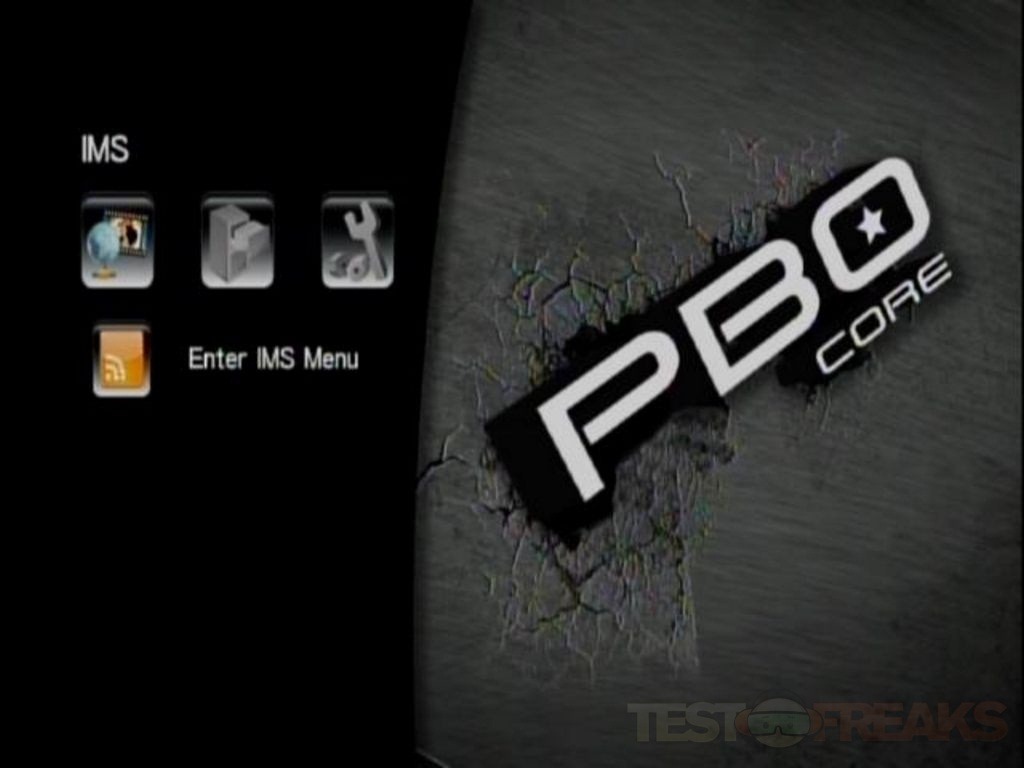

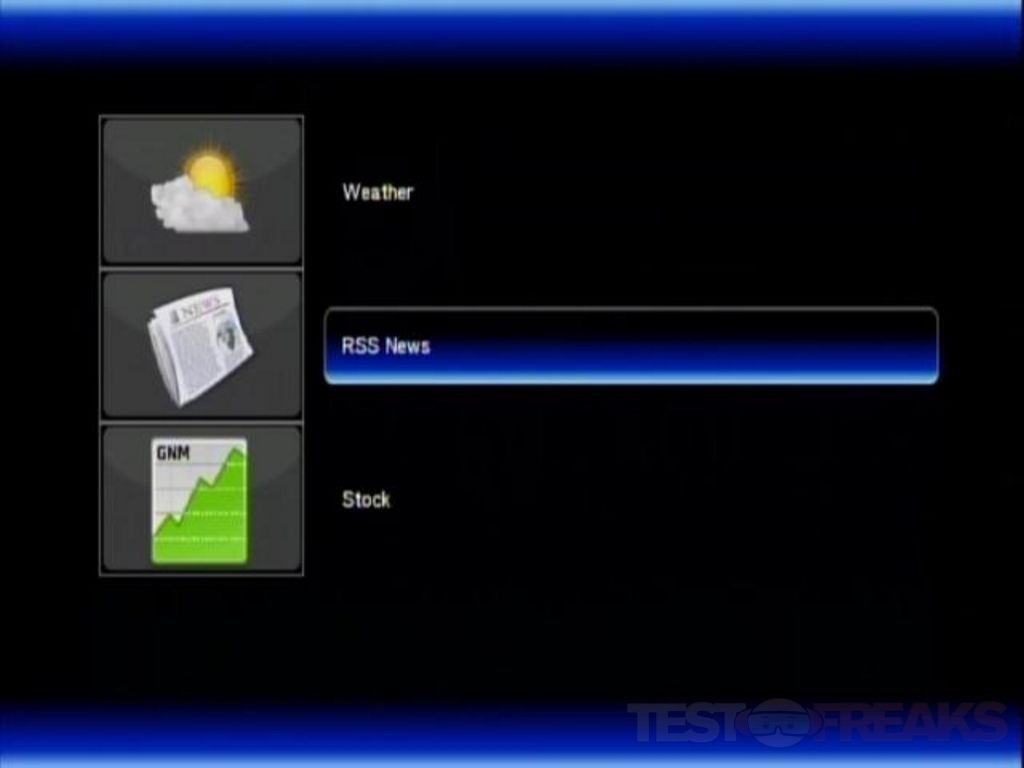

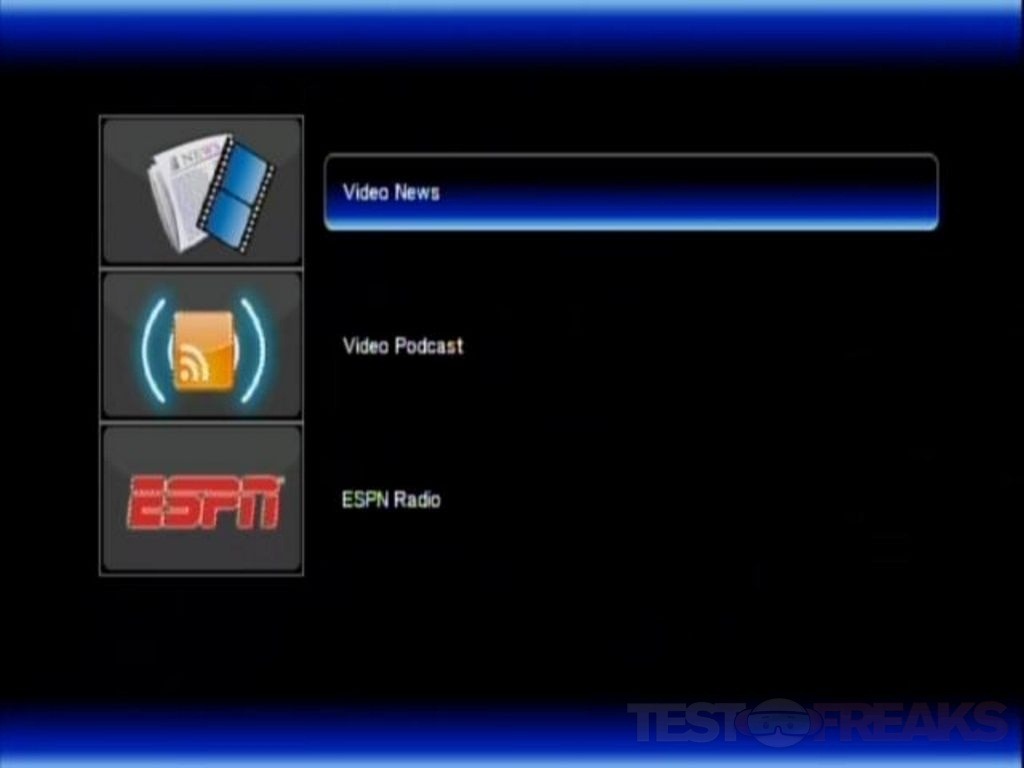

The IMS option is for Video Feeds, Podcasts, Picasa, Flickr, Stocks, Weather and others.


pbocore25 pbocore26

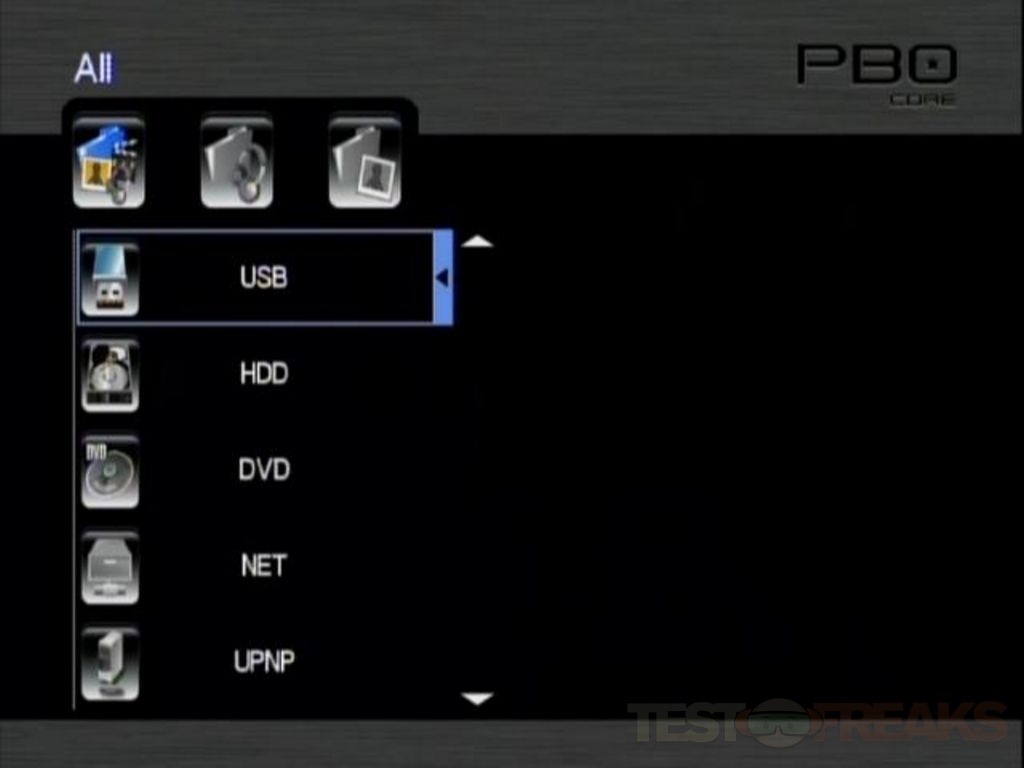

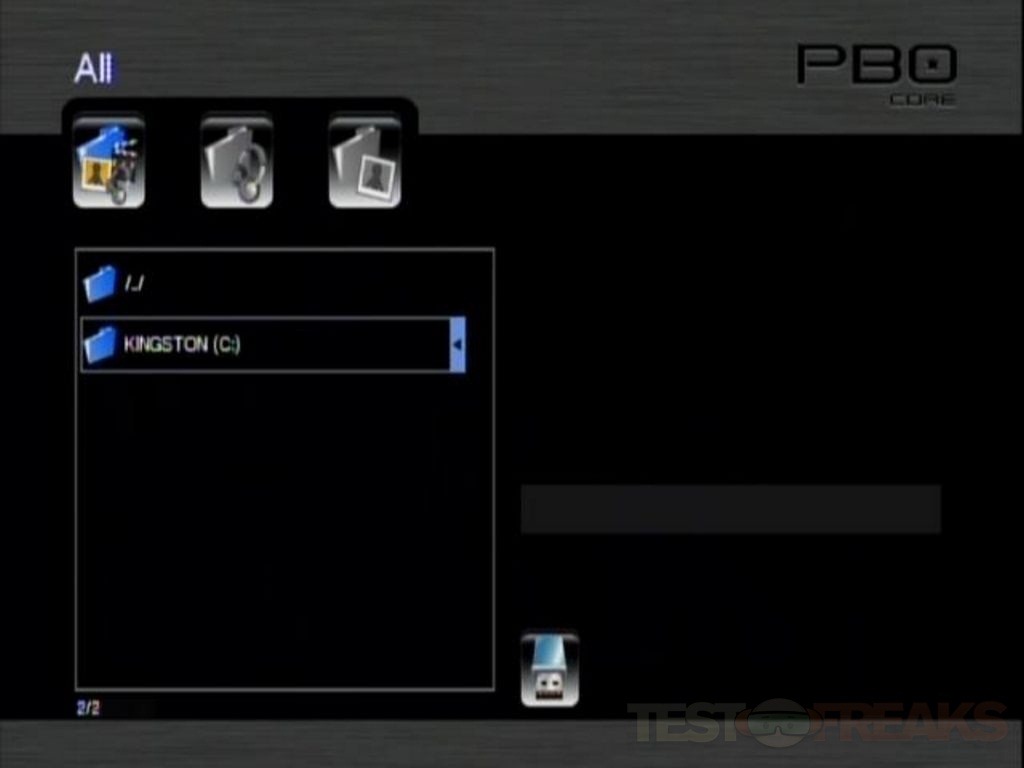

I tossed photos, music and a few movies in different formats on a USB drive to test it out. My USB drive was instantly recognized and after selecting USB the name of the drive was there, Kingston.

pbocore27 pbocore28

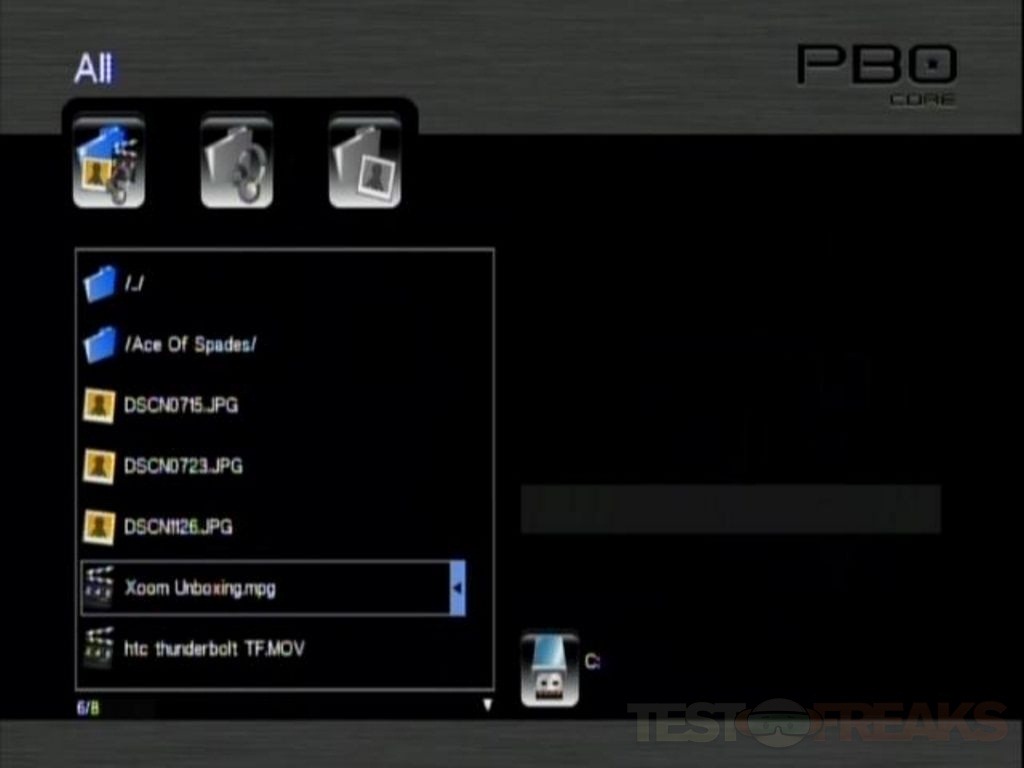

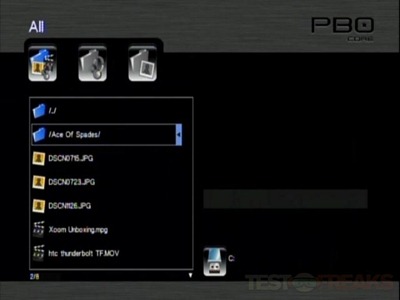

Click on the drive and then you’ll be taken to the first selection which is labeled All, it shows everything on the drive.

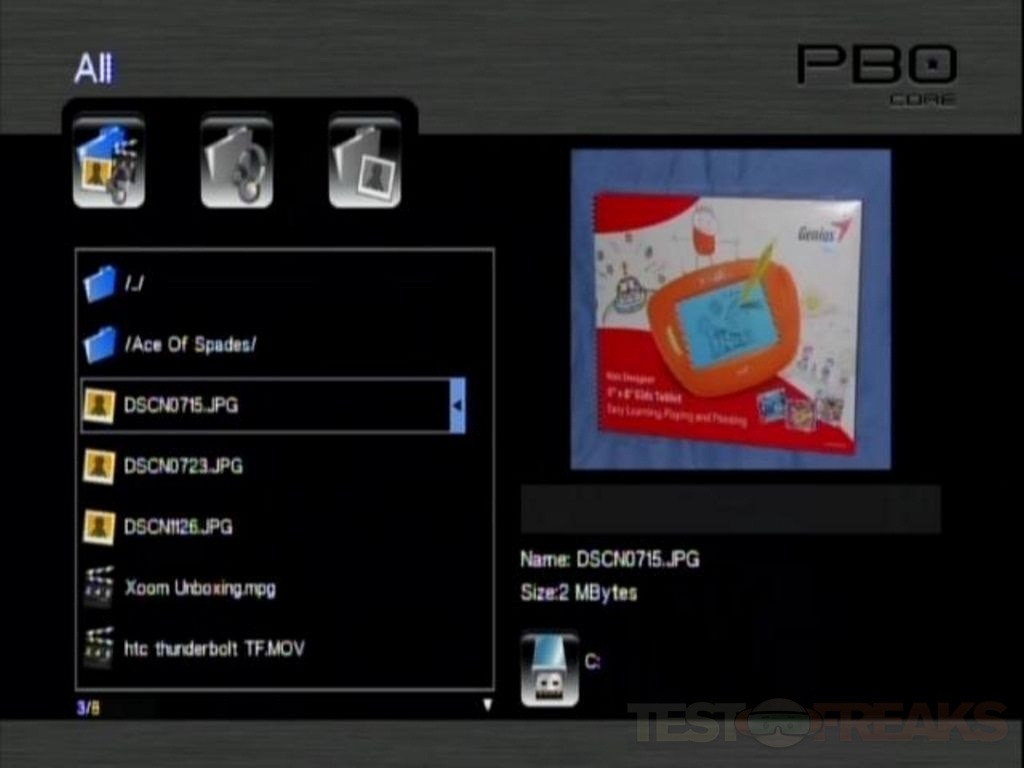

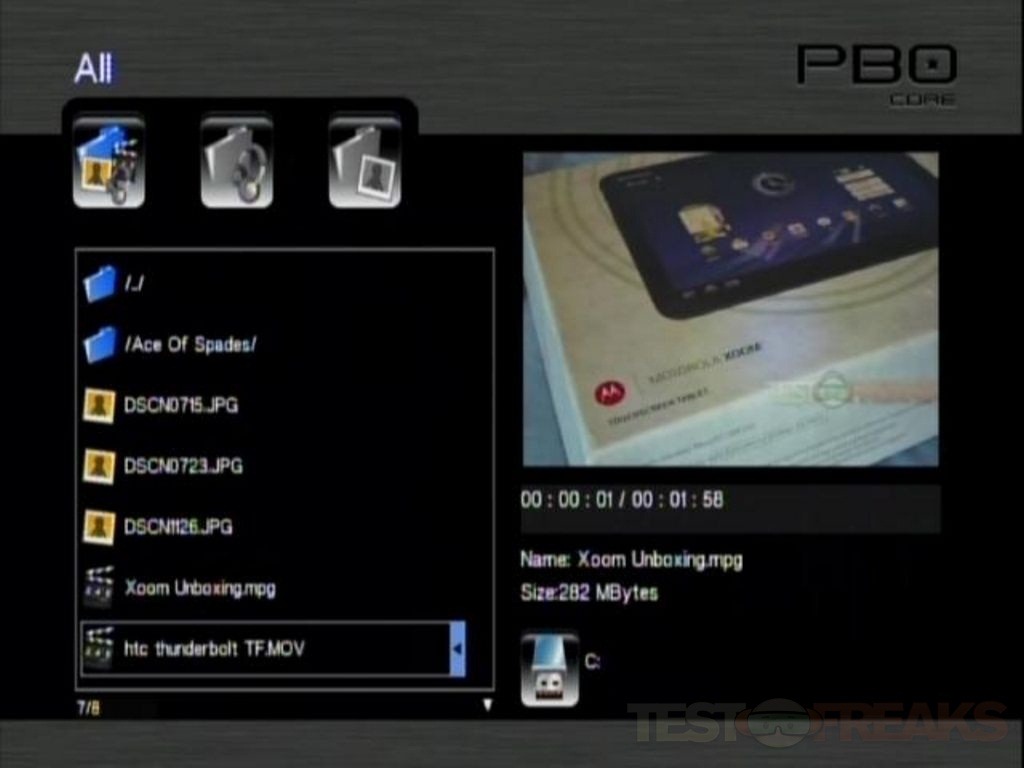

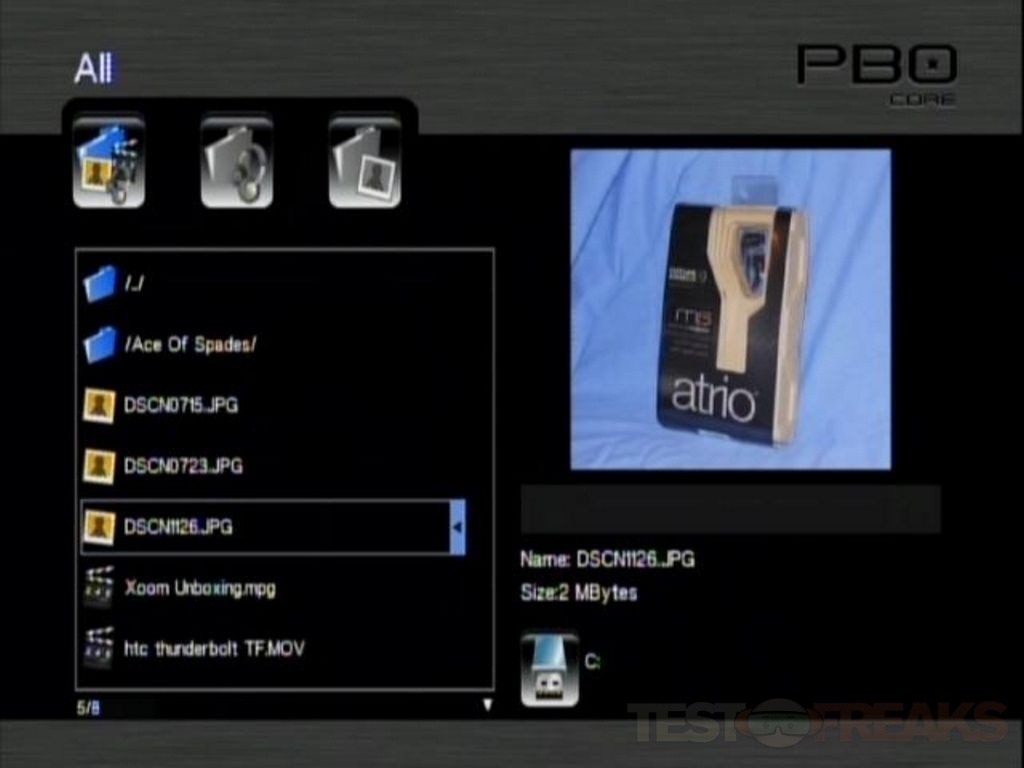

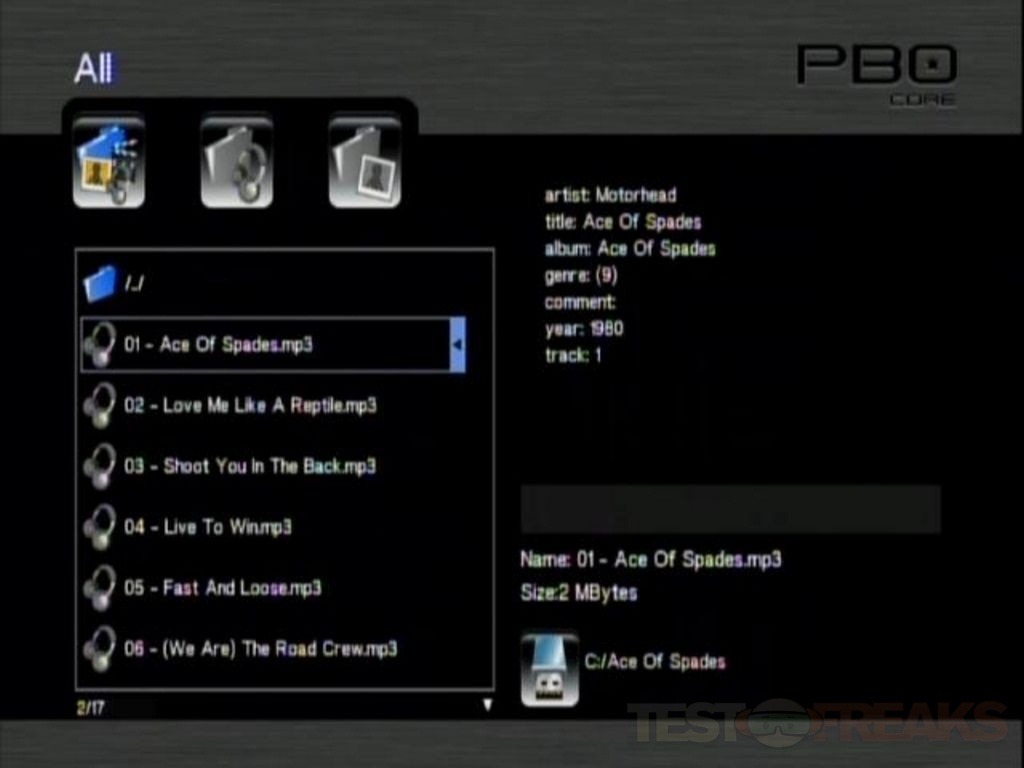

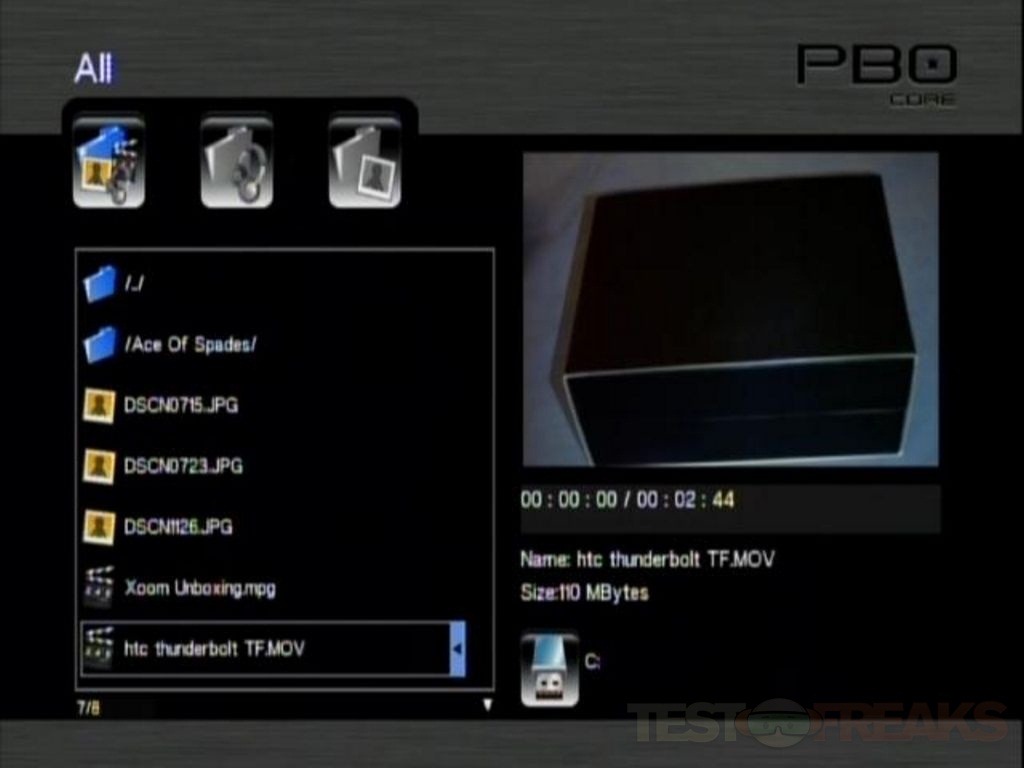

Movies, photos and music will show up in the preview box so you can see what’s there.  When you have a bunch of photos you can run a slideshow if you want.

pbocore30 pbocore31

pbocore32 pbocore33

pbocore34 pbocore35

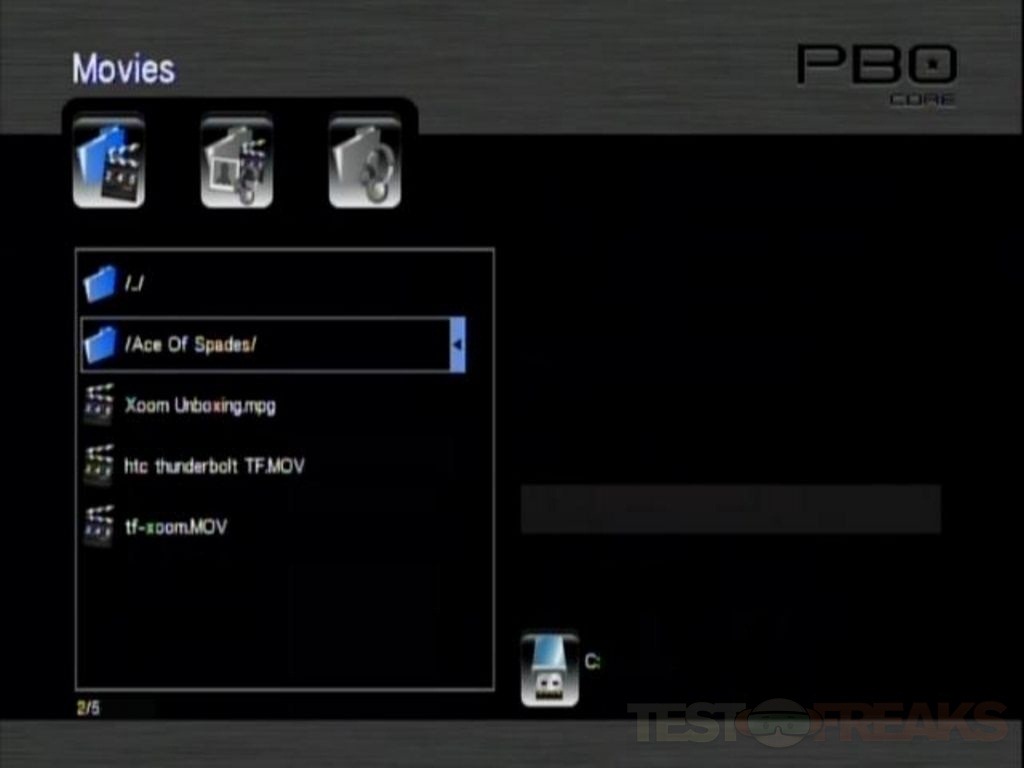

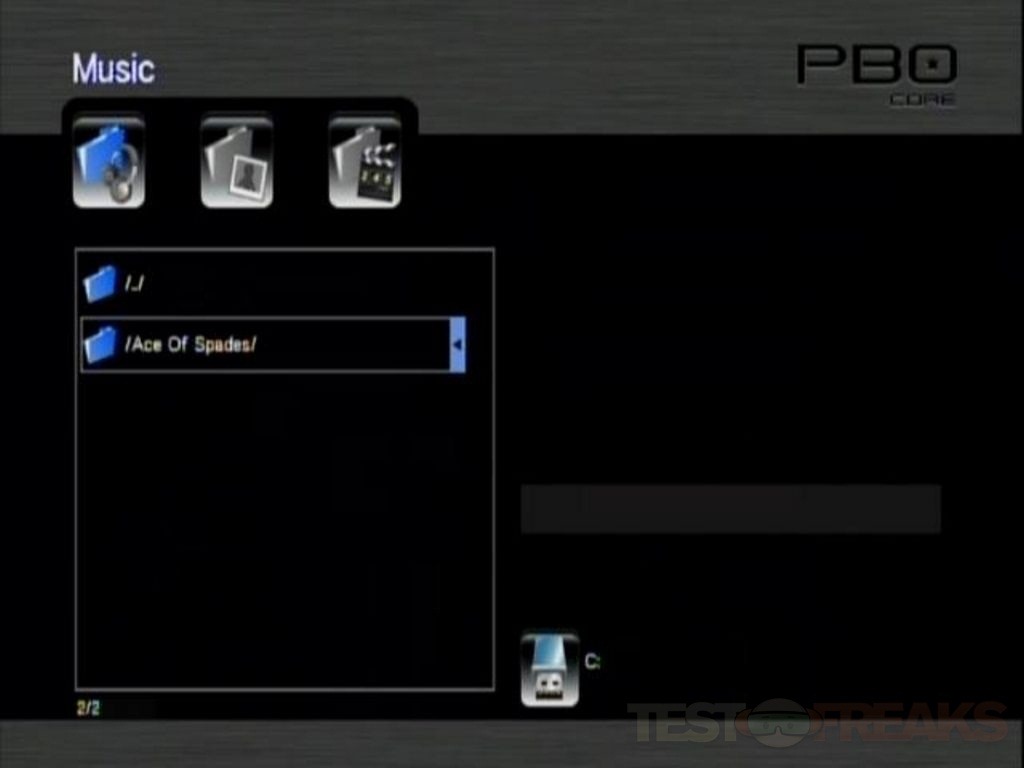

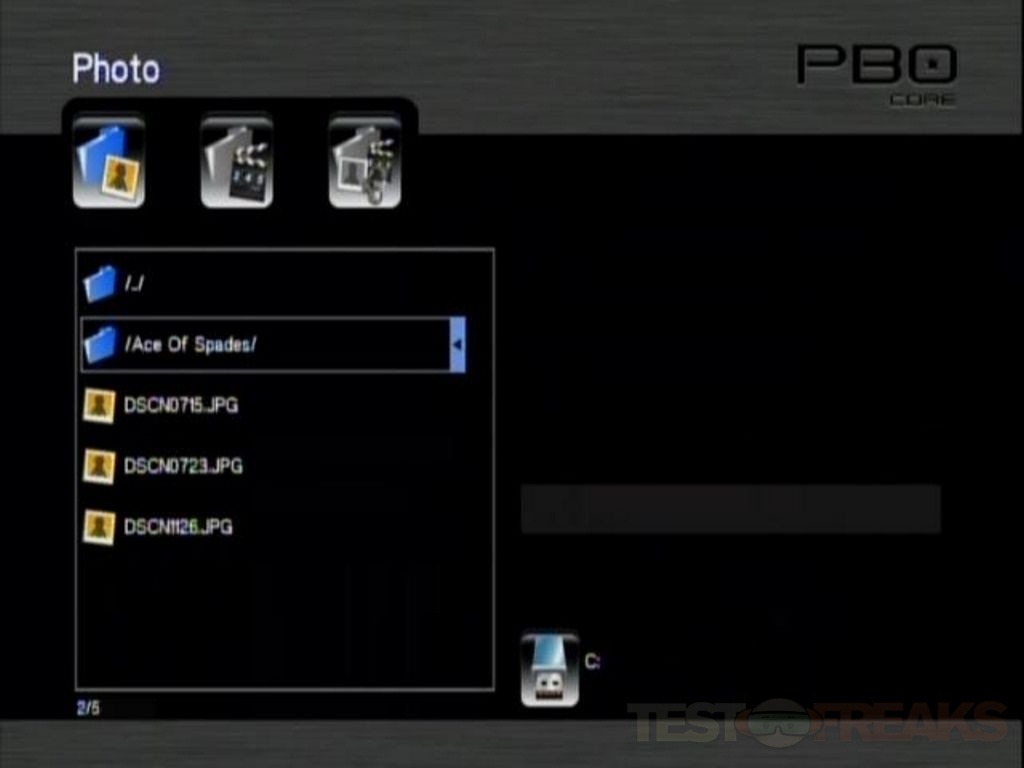

You can also select by category of Music, Photo, or Movies and only those thing will be displayed for you to pick from.


pbocore37 pbocore38

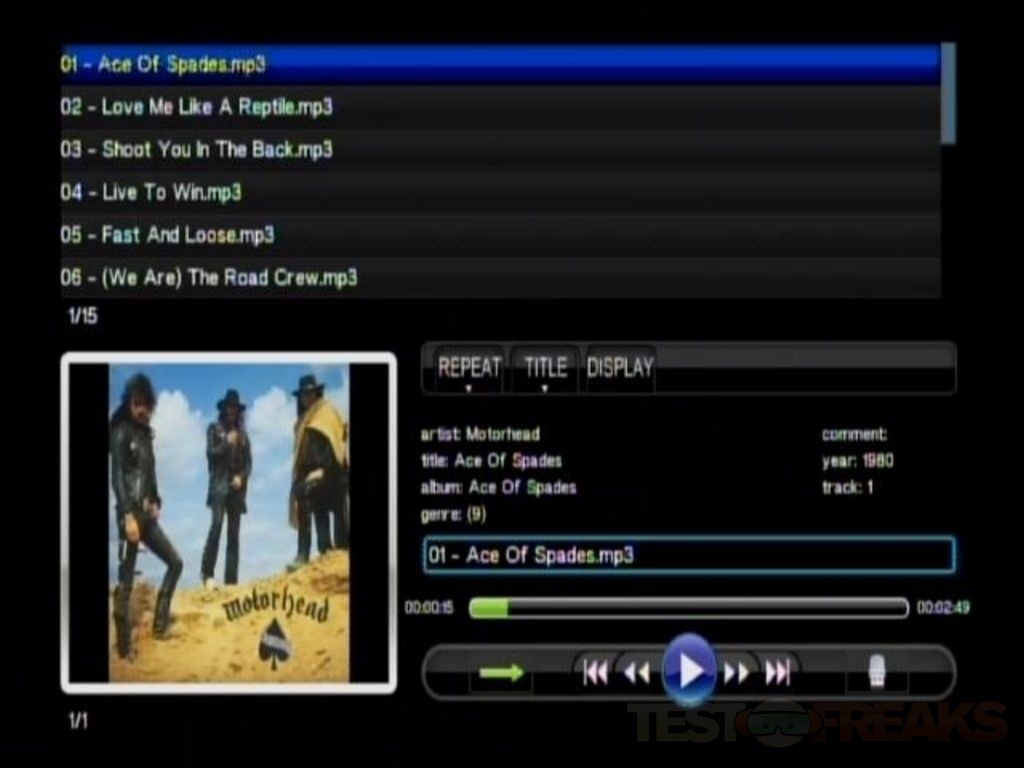

The Music player is nice, it even shows album art.


The remote control works very well, it has a decent range and it can control everything you need it to.

You can connect the PBO Core using the Patriot wi-fi adapter, or you can connect over Ethernet if you’ve got the cabling around. The wi-fi adapter can be configured via the Setup interface, and plugged into one of the available USB ports. Using the wi-fi adapter though will take up a USB port leaving you with only one free on the back or the front. I don’t think it’s much of a big deal though really as I think one UBS port is more than enough.

If you don’t want to rely on external storage you can install a 2.5” hard drive inside of the PBO Core, this is by far the easiest way to add storage.

The PBO Core plays video over 1080p over the included HDMI cable and it plays it well, the picture is very nice and high quality. The PBO Core supports audio of Dolby Digital and DTS surround so you’re movies and music will sound very good if you’ve got a decent system of course.

Steaming over Ethernet is perfect, but over wireless I did notice some stutters playing HD content. I have 802.11N wireless so I’m not sure why I ran into the issue. I have Ethernet cable and a switch near my entertainment center so I can run a wired connection so HD content isn’t an issue for me. Those who want to use wireless with PBO Core might experience some issues though.

Overall I like the PBO Core very much, and I think anyone else will.

pbocore1 pbocore3 pbocore4 pbocore5

The PBO Core is an excellent and versatile media player that would be right at home as the center or just part of you media center setup.

Patriot fully supports the PBO Core with updates frequently, and you can even expand on it as there is a large user base within the community.

The PBO Core is very easy to setup and use, I think anyone who gets one will be very happy with it. It plays many audio and video formats, all the popular formats and then some. It’s just a great little media player truly.


+Very easy to setup and use
+Plays many audio and video formats
+Can be used with or without a hard drive
+Can be used wired or wireless

-Wireless isn’t exactly as fast as expected
